Angular: Dynamic Importing Large Libraries

This post explains how to import large 3rd-party libraries into your Angular application without pain on initial payload size.

Example: Chart.js in Angular

Chart.js is a popular library to render rich charts. It contains a lot of features and its payload size is huge.

To use it in your Angular application, typically you write a import statement in TypeScript code and call it like the below;

import { Component, ViewChild, ElementRef } from "@angular/core";

// Import 'chart.js' package
import * as Chart from "chart.js";

  selector: "app-root",
  template: `
      <canvas #chart></canvas>
export class AppComponent {
  @ViewChild("chart") chartElement: ElementRef<HTMLCanvasElement>;

  ngOnInit() {
    new Chart(this.chartElement.nativeElement, {
      /** chart configurations */

As you can expect easily, this import makes main.bundle.js large. Increasing the initial payload size is one of what we want most to avoid.

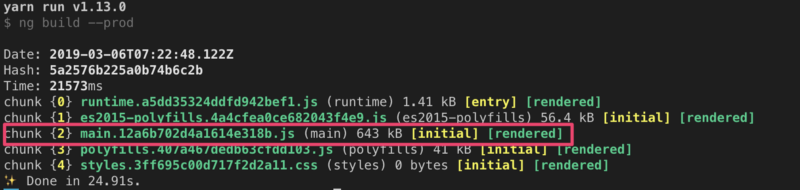

Build result
Build result

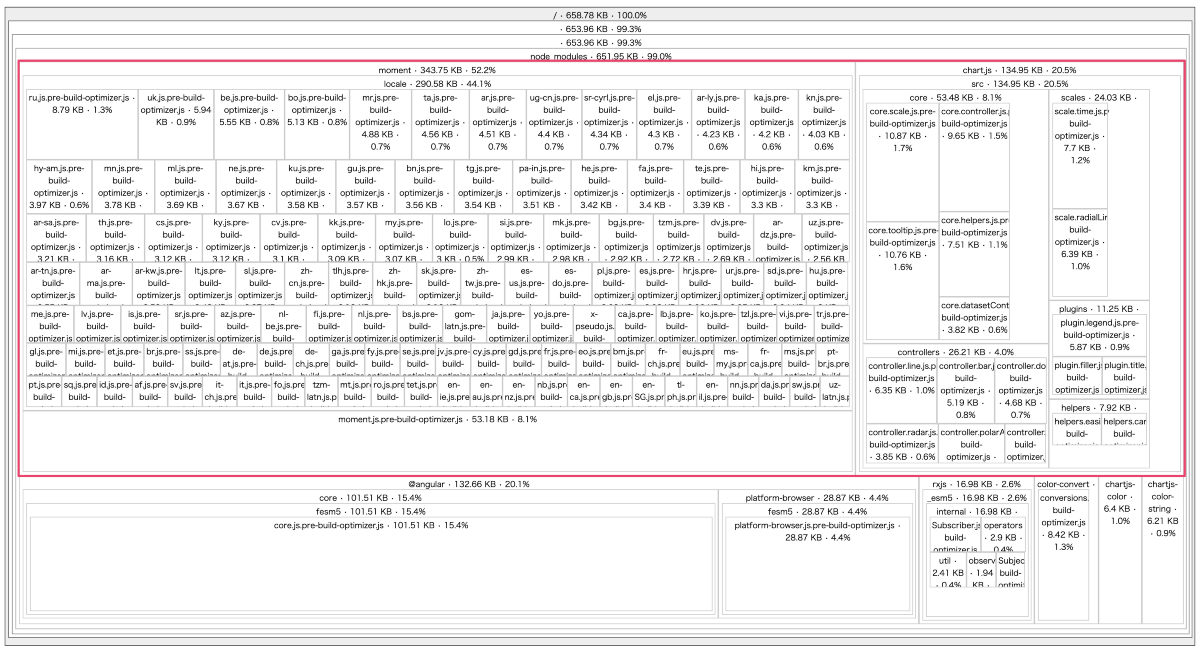

Chart.js: ~500KB
Chart.js: ~500KB

Use import()

import() is a new feature of ECMAScript. It loads a script dynamically in runtime. In the future, all modern browsers support it natively. But today, its support is not enough.

Can I use… JavaScript modules: dynamic import()

No problem, webpack helps us. webpack can replaceimport() calls with its own dynamic module loading function in the bundling flow. You can imagine it just like a polyfill.

webpack: Dynamic Imports

Because Angular CLI uses webpack, we can use it, even in Angular CLI-based applications. There is no “eject”. Don’t worry! :)

Preparation: Edit tsconfig.json

Also, TypeScript has support for dynamic import() , but it is enabled only in some module types. Open tsconfig.json at the root directory and set its module field to esnext . It doesn’t affect the final bundle’s browser compatibility because all module resolutions are solved by webpack behind of Angular CLI.

  "compileOnSave": false,
  "compilerOptions": {
    "baseUrl": "./",
    "outDir": "./dist/out-tsc",
    "sourceMap": true,
    "declaration": false,
    "module": "esnext",
    "moduleResolution": "node",
    "emitDecoratorMetadata": true,
    "experimentalDecorators": true,
    "importHelpers": true,
    "target": "es5",
    "typeRoots": ["node_modules/@types"],
    "lib": ["es2018", "dom"]

Migrate to dynamic import()

Call import() in the TypeScript code simply like following. That’s all…

import { normalizeCommonJSImport } from '../utils/normalizeCommonJSImport';

// import() returns a Promise
const importChart = normalizeCommonJSImport(
  import(/* webpackChunkName: "chart" */ 'chart.js'),

@Component({ ... })
export class AppComponent {
  @ViewChild('chart') chartElement: ElementRef<HTMLCanvasElement>;

 async ngOnInit() {
    // Wait for dynamic import resolution
    const Chart = await importChart;

    new Chart(this.chartElement.nativeElement, {
      /** chart configurations */

normalizeCommonJSImport is a utility function for compatibility between CommonJS module and ES modules and for strict-typing.

export function normalizeCommonJSImport<T>(
  importPromise: Promise<T>
): Promise<T> {
  // CommonJS's `module.exports` is wrapped as `default` in ESModule.
  return importPromise.then((m: any) => (m.default || m) as T);

For details about module compatibility, please read this.

webpack 4: import() and CommonJs

In this case, TypeScript’s import() returns Promise<typeof Chart> as well as import * as Chart from ‘chart.js’. This is a problem because chart.js is a CommonJS module. Without any helpers,default doesn’t exist in the result of import() . So we have to mark it as any temporary and remark default as the original type. This is a small hack for correct typing.

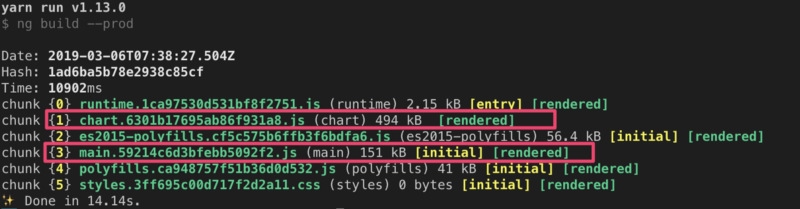

As the result, you can see separated bundles like below. chart.<hash>.js is not marked as [initial]; it means this bundle is loaded lazily and doesn’t affect initial bootstrapping.

Build result
Build result

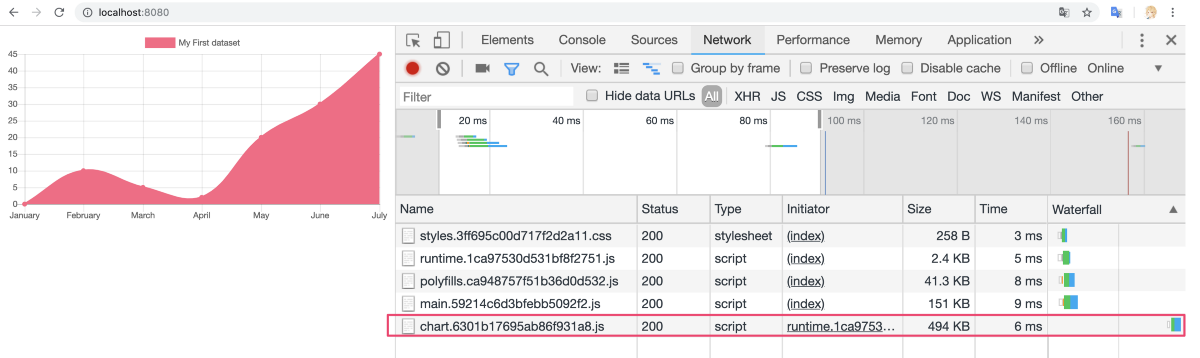

Dynamic loading in the browser
Dynamic loading in the browser


  • Static importing large libraries brings big pain for initial bootstrapping performance.
  • Dynamic importing will come to modern browsers in the future, and we can use it today with webpack’s help.
  • There are some issues which we have to care about around CommonJS-ESModules compatibility.

The full code example is here. Thanks.
